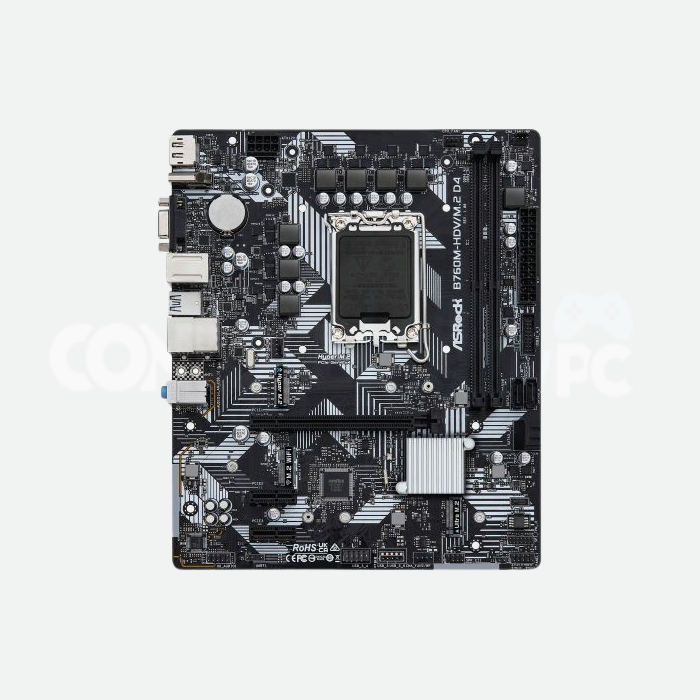

Asrock B760M-HDV/M.2 D4, Intel B760, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, GB LAN, PCIe4, 2x M.2

£110.99

In stock

SKU

B760M-HDV/M.2 D4

Key Features

Product Details
Type	Desktop
Socket	Intel 1700
Form Factor	Micro ATX
Chipset	Intel B760
Maximum Memory	128GB
RAM Slots	2 x DIMM
RAM Speed	Up to 5333+(OC)
Graphics	Integrated Graphics
Graphics Port	1 x VGA 1 x HDMI 1 x DisplayPort
PCI/PCI Express	1 x PCIe 4.0 x16 (supports x16 mode) 2 x PCIe 3.0 x1
Storage	4 x SATA III 11 x M.2 (2280) - PCIe 11 x M.2 (2280) - SATA & PCIe
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
LAN	GB LAN
Audio	7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
USB Ports Supported	1 x USB 3.2 Gen1 Type-C (at back) 5 x USB 3.2 Gen1 Type-A (3 at back, 2 at mid-board) 5 x USB 2.0 (2 at back, 3 at mid-board)
Back Panel I/o Ports	2 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard 1 x D-Sub 1 x HDMI 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C 3 x USB 3.2 Gen1 Type-A 2 x USB 2.0 1 x RJ-45 LAN HD Audio Jacks
Internal I/O Connectors	1 x SPI TPM 1 x Chassis Intrusion and Speaker 1 x CPU Fan 1 x CPU/Water Pump Fan 2 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x 8 pin 12V 1 x Front Panel Audio 2 x USB 2.0 1 x USB 3.2 Gen1
Accessories	1 x User Manual 1 x I/O Shield 2 x SATA Data Cables 3 x Screws for M.2 Sockets
Package Weight	0.9000 kg
Warranty	2-Year Replacement Warranty
Condition	Brand New

More Information
Refurbished	No
Condition	Brand New
